Low Voltage vs Medium Voltage Distribution Transformers: How to Decide for Your Industrial & Commercial Project

One of the most important engineering considerations for the industrial or commercial installation is the choice of transformer voltage class. This decision directly impacts capital expenditure, operational efficiency, safety standards and scalability in the future. Low voltage (LV) and medium voltage (MV) distribution transformers, up to 10 MVA and 3.3kV to 132 kV, are engineered based on our Eaton joint venture heritage and CNAS accredited dual 35 kV / 110 kV test labs. The guide explains the main considerations that will help you determine the one that suits your project best.

System Voltage & Grid Interface – Matching Your Incoming Supply

The primary consideration is always the voltage of your utility feed or on-site generation. Low voltage transformers are usually used to transform primary voltages of less than 1 kV (such as 480 V and 600 V) down to 208 V, 240 V or 400 V for distribution to the end user. Medium voltage transformers, on the other hand, function between 3.3 kV and 132 kV, and limit high power grid inputs to lower voltage levels or link renewables with collector systems.

Where power is supplied to your facility at 11 kV, 33 kV or 66 kV you automatically have an MV transformer at the service entrance. If the building is small (less than 480 V utility feed) an LV unit is enough. In many industrial campuses having dispersed loads however, the selection of a single MV transformer with multiple LV substations is preferred in order to limit the line losses and reduce the size of the cable. We offer cast resin dry-type and oil-immersed MV designs (up to 110 kV/132 kV), as well as compact pad-mounted and substation-integrated versions – precisely matched to your site's incoming power.

Load Profile & Distance – Efficiency, Losses, and Voltage Drop

Medium voltage distribution is the star in the case of larger loads (more than 1 MVA) and over long distances. For the same power, at higher voltages, the current is lower, therefore reducing I²R copper losses and permitting a smaller conductor size. In a data center, EV battery plant or large warehouse complex, a single MV loop can be used to provide power to multiple load centers while keeping the voltage drop to a minimum and total number of transformers low.

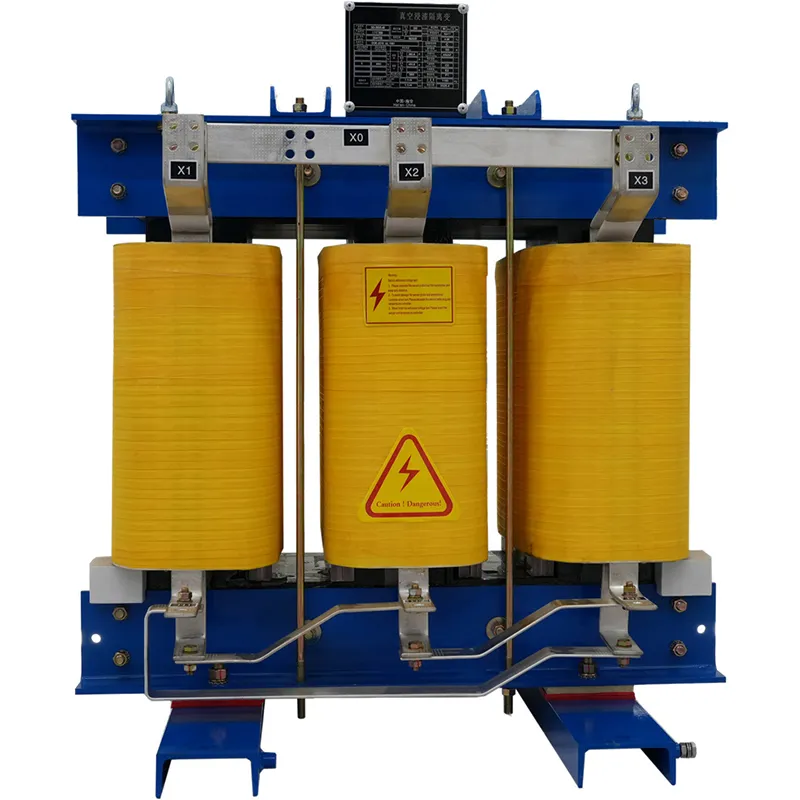

On the other hand, if you have less than 1 MVA of total connected load and the equipment clusters are concentrated close to the point of entry, an LV transformer can be more easily maintained and is also smaller and simpler. Ryan Electric's VPI and cast resin dry type transformers are suitable for LV applications in an enclosed environment where fire protection and low partial discharge are top concern. When it comes to oil immersed power transformers, our (up to 10MVA) power transformers for heavy industrial sites that have long feeder runs provide outstanding performance in terms of both thermal capacity and overload capability, and are engineered to provide the most cost-effective TCO over a 25-year life cycle.

Space, Environment & Safety – Indoor vs. Outdoor, Fire Risk, and Climate

The impact of physical footprint and the environment are crucial. MV transformers typically need to be in larger clearances and must have a dedicated outdoor pad or vault, however our compact substation transformers incorporate the MV switchgear and LV distribution into a single weatherproof enclosure thus conserving site space to a significant level. Low voltage dry type transformers are considered for use in indoor installations in commercial high rises or underground malls due to following advantages: self extinguishing, no oil leakage, quiet operation.

Dry type transformers manufactured by Ryan Electric have been certified by IEEE, UL, CE and DEKRA, ideal for fire sensitive areas. These MV units are sealed tank units with high temperature insulation systems specially designed for use in tough outdoor conditions, tropical humidity, desert dust or coastal salinity. For distributed renewables and utility-scale storage, our single-phase and three-phase pad-mounted MV transformers deliver the environmental resilience required.

Future Expansion & Standardization – Scalability and Spare Management

Projects in the industry and commercial sector tend to develop in stages. Selection of MV distribution at the beginning provides headroom: additional LV substations can be added on without the need to upgrade the main utility transformer. This approach is termed “one up” as it will decrease future downtime and re engineering costs. If the project is a complete building and not expecting expansion, then an LV transformer offers the power immediately, be cost effective, have off the shelf spare parts and be easily serviced in the field.

All the transformers, both LV and MV, are designed at Jiangsu Ryan Electric with module concept. Today's unit meets the demands for tomorrow's loads with our R&D team's customization of tap changers, cooling configurations and enclosure ratings. More than 20 product series, and project experience around the world (Microsoft State Grid, renewable energy plants, infrastructure in 80+ countries), mean your selected voltage class not only meets the needs of the moment, but your long term plans as well.

Your Project, Our Engineered Answer

From a commercial high rise 480 V VPI dry type transformer to a solar storage farm oil immersed pad mount transformer, Jiangsu Ryan Electric provides precision built transformers which meet IEEE, IEC, CSA and GB standards, certified by our own in-house CNAS laboratory, and have been type tested by ASTA, CSA, CE, and DEKRA worldwide. All units are rigorously tested and retested before shipping out to ensure they meet routine, type and special requirements.

It's time to go from specification to solution. Get a no obligation voltage class assessment from our technical engineering team today. Provide us with your load data, site arrangement and interface with the utility and we will provide you with a customized proposal back to you in under 48 hours that includes drawings, loss calculations and lifecycle cost comparisons.

Contact us today for a custom quote, or a virtual design review! We can help you choose, dimension and tailor the perfect LV or MV transformer that will deliver the performance, safety and return on investment you need for your project. Send an email to our project desk or give Ryan Electric a call in your region and your next generation power solution is just a call away.
