SC(B) Series 110kV up to 40000KVA Three Phase Cast Resin Dry Type Transformer

Overview

Voltage:	110 kV
Rated Power:	Up to 40000KVA
Primary Voltage:	110 kV
Secondary Voltage:	10 kV, 11 kV, 13.8 kV, 15 kV, 20 kV, 22 kV, 35 kV
Core material:	Copper/Aluminum
Cooling Methods:	AN/AF
Operational Environment:	Heat/Cold/Earthquake/Corrosive
OEM & ODM:	Color & Logo

Description

Our company has successfully developed a 110kV three-phase epoxy resin cast insulation dry-type power transformer and taken the lead in formulating related industry standards, showcasing strong technological innovation. These transformers are widely recognized for their outstanding fire and disaster prevention performance, along with high reliability, compact size, and maintenance-free operation.

Advantages

• Inlet/outlet terminals equipped with an umbrella skirt for enhanced protection

• Segmented stepped structure for wire turns to improve performance

• Partitioned tapping range to minimize lead length

• Resin casting with fillers for durability and insulation strength

• Three-phase integrated design for stability and efficiency

Production Process

Production Process of Dry Type Transformers

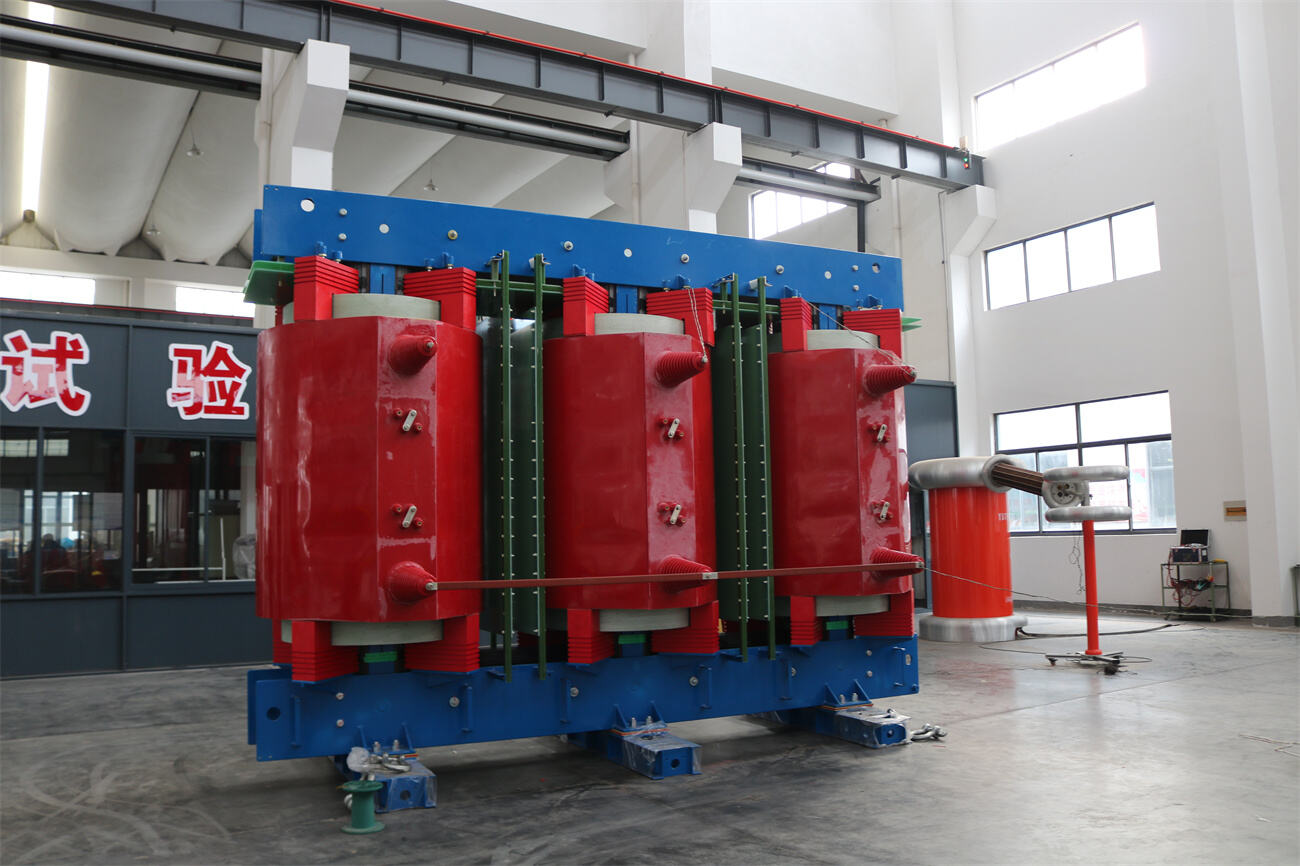

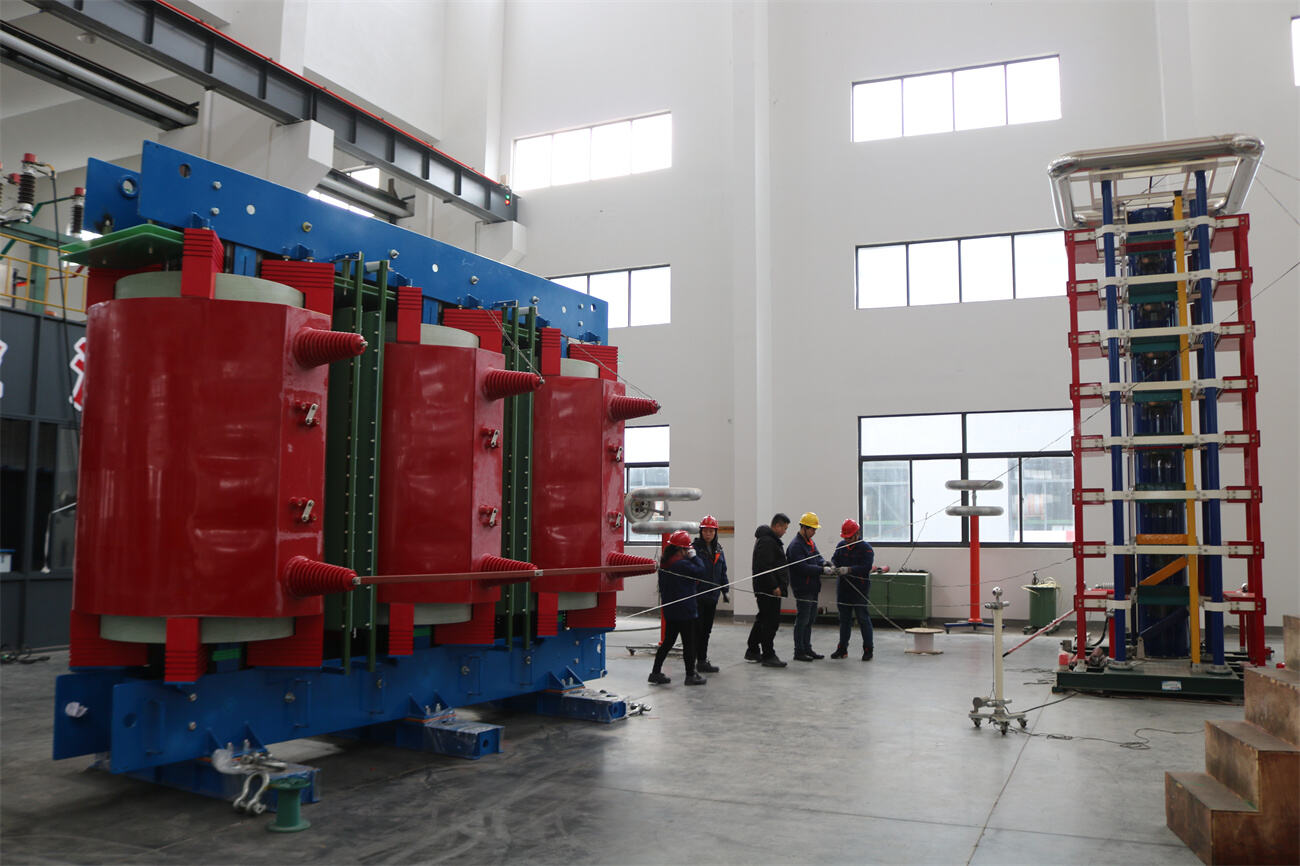

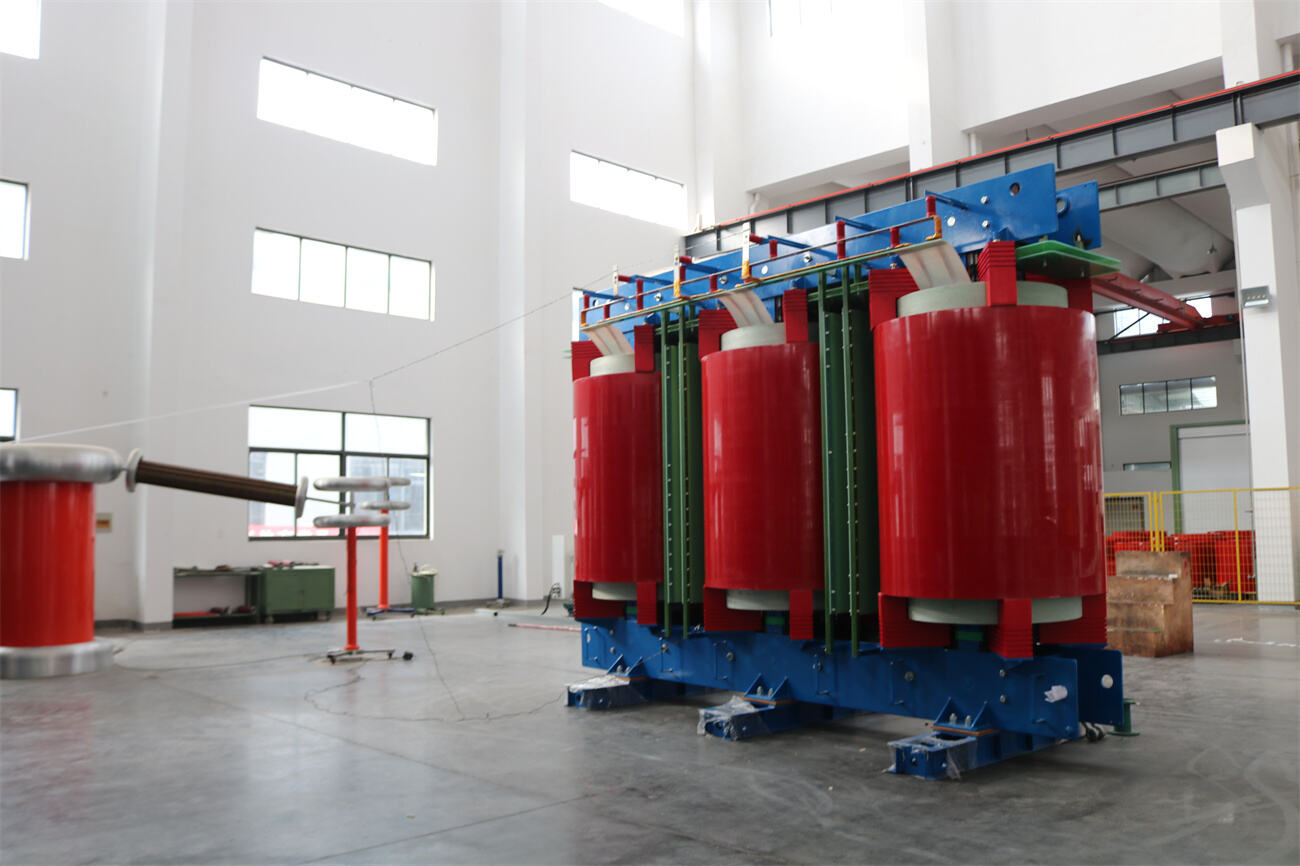

Finished Transformer

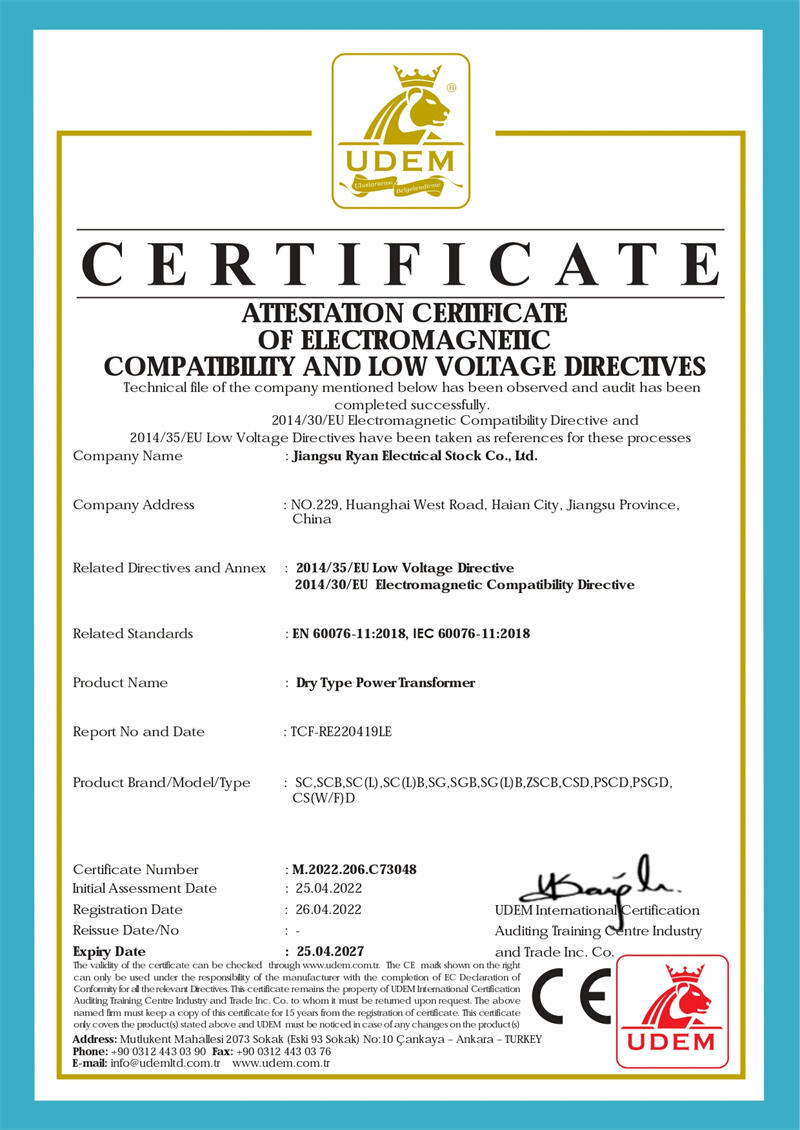

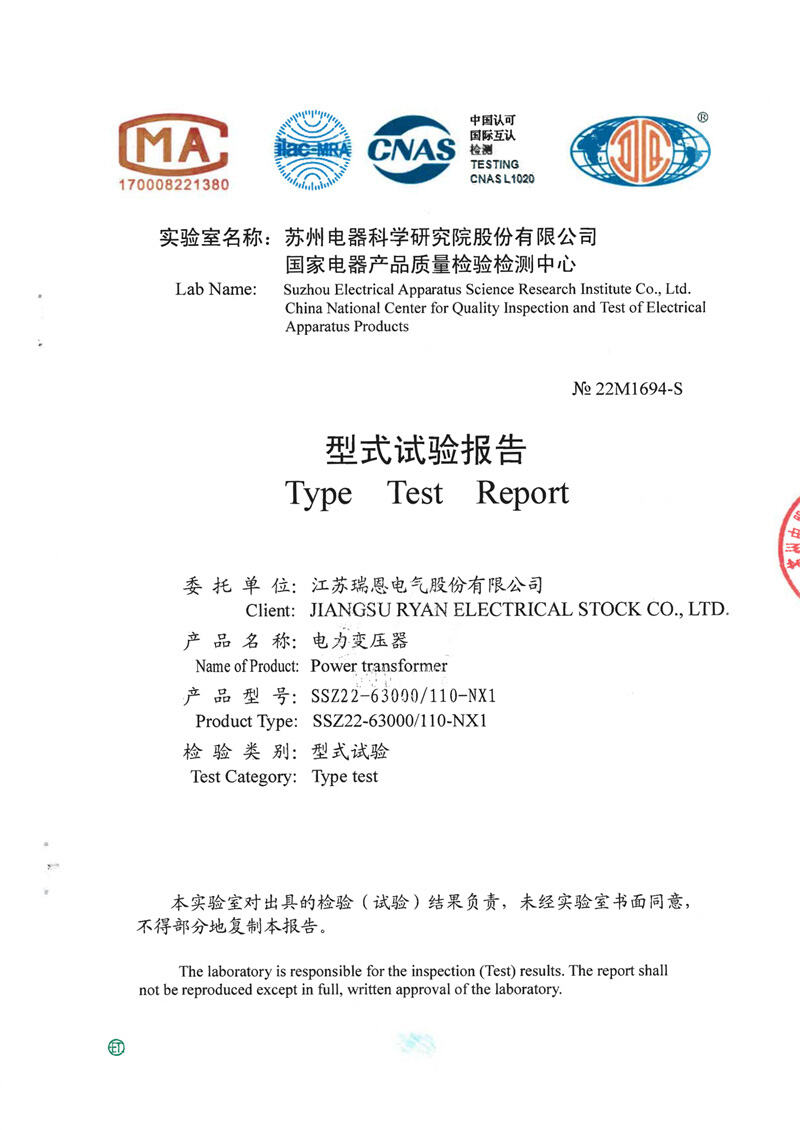

Certificates

FAQ

Q: Who are we?
A: As a joint venture with Eaton in 2023, Ryan Electric is a leading and professional manufacturer of cast resin transformer, oil immersed transformer, pad mounted transformers and every kinds of substations since 2007.

Q: Why should you buy from us not from other suppliers?
A: Our company holds international certifications including UL/CSA/IEEE/IEC/EUR and DEKRA. Also obtained CNAS certification for testing center. We are key partners to world-renowned enterprises such as Microsoft, Amazon, TBEA, and State Grid, providing reliable, secure, and stable power equipment and services.

Q: OEM and ODM available?
A: Yes, we supply customized solution to clients.

Q: What are preferred Terms of Payment and delivery?
A: T/T, L/C, EXW, FCA, FOB, CFR, CIF, DDP

Q: How long is the warranty of your product?
A: We offer a standard warranty of 12 to 24 months from the date of commissioning or shipment, depending on the product line.

Q: How long is your production time?
A: Lead times vary based on product complexity, customization, and order volume. Standard product lead times range from 4 to 12 weeks. With a monthly production capability of 2,000 units, our annual output reaches up to 20,000 MVA.

Q: After-sales service
A: Our support services include:
-Installation guidance & technical support available on-site or online.
-30-minute response time to any customer inquiry.
-2-hour commitment to provide a preliminary solution.
-48-hour on-site dispatch if required.

Q: Want to join our network as a branded partner?
A: Yes, we welcome potential partners! We are committed to supporting our agents with comprehensive business, technical, and after-sales support. To ensure your success, we implement a market protection strategy and work closely with you to develop the global market, fostering a truly win-win partnership.

Q: What are the primary applications of our transformers?
A: Our transformers deliver specialized solutions for a range of key sectors: Electric Power, Data Center, New Energy, Petrochemical Industry and Construction, among others.
