Substation Transformer Selection Guide: Key Parameters for EPC Project Procurement

An EPC contractor in the Gulf sent us a specification in June for three 110 kV substation transformer units. Voltage, rating, frequency and impedance were all listed. The temperature rise column was blank, the site ambient was written as 50 C, and the tap range said suitable. Those three blanks took more discussion than the other twenty pages combined.

That pattern is normal. Parameters an EPC engineer can copy from a load list get filled in; the ones that need a thermal model or a system study get deferred to the supplier, who then fills them with defaults written for a 40 C ambient and a strong grid.

The cost of getting that wrong has changed. Wood Mackenzie data reported by pv magazine in May 2026 puts substation transformer demand up 116 percent between 2019 and 2025, with lead times for high-capacity units extending as far as four years and prices up roughly 80 percent over five years. A parameter found wrong at factory acceptance in 2026 costs a project a construction season, not a change order.





Start with Transformer Impedance, Because It Sizes Everything Downstream

Percent impedance is the voltage that must be applied to the primary to circulate rated current with the secondary short-circuited, expressed as a percentage of rated voltage. On paper it is one number. In service it sets the available fault current at the LV busbar, the voltage regulation between no load and full load, and how load divides between transformers running in parallel.

The direction of the error matters. Too low, and the fault current at the secondary busbar can exceed the interrupting rating of switchgear that was already purchased. Too high, and the transformer needs a wider tap range to hold secondary voltage, and any parallel unit must match it closely or the one with the lower value carries more than its share. On medium and large power transformer units the value typically lands between about 8 and 12 percent on the transformer rating base, but the number that matters is the one your system study used.

Here is where the review usually starts. A study is run on a 100 MVA system base, the specification then states an impedance target on the transformer base, and the two numbers no longer describe the same circuit. In one recent package the requisition asked for 12 percent while the fault study behind it assumed a value that converted to roughly 10 percent; the difference was one step in breaker rating and a re-issued single line diagram. The conversion is arithmetic, not engineering. It just has to be done by one person and checked by another.

Windings also have to survive the fault current the impedance allows. IEC 60076-5 sets out the short-circuit withstand requirements, including the two-second test on a unit that has already passed its dielectric tests. Ask for the short-circuit withstand evidence on any substation unit that will sit at the top of a distribution network, where fault levels are highest.



Cooling Class and Temperature Rise: the Number Nobody Writes Down

A transformer is rated for a defined thermal environment, and the default assumption in most specifications is a maximum ambient of 40 C. IEC 60076-2 fixes the liquid-immersed limits that back that rating: a top-oil temperature rise of 60 K, an average winding rise of 65 K measured by resistance, and a winding hot-spot rise of 78 K. At 40 C ambient the hot spot sits near 118 C, which is where the insulation system expects to live.

Move the same unit to a site that reaches 50 C in July and the arithmetic stops working. The declared temperature rise does not change, but the absolute temperatures do, and insulation ageing roughly doubles for every additional 6 K at the hot spot. A unit that looked comfortable on the datasheet is now spending its insulation life faster than the twenty-five-year design intent.

There are three legitimate answers, and the specification should choose one rather than leave it to the quotation. Specify a lower temperature rise class and accept a heavier, more expensive active part. Specify a higher cooling class so the guaranteed rating is reached with fans running, which is the usual choice for a substation oil immersed transformer in hot climates. Or keep the class and publish the actual loading capability at site ambient, so the operator knows where the limit is instead of guessing.

The practical version of this conversation is short. We sent a quotation back to that Gulf contractor with ONAN and ONAF ratings side by side at 50 C and asked which one the load list had been written against. The answer was ONAF from day one, and the civil works for the cooler bank moved into the substation layout two months before the steel was cut.



Tap Range: Buy Only the Regulation You Need

Off-circuit taps of plus or minus 2 x 2.5 percent are the factory default on most distribution and small power transformers, and they exist to correct a one-time voltage mismatch at commissioning, not to follow a grid that moves every day. If the incoming voltage swings with load, or the station sits at the end of a long line, an off-circuit tap changer will not be adjusted often enough to matter.

In that case the specification needs an on-load tap changer with a stated range, typically somewhere between plus or minus 8 x 1.25 percent and plus or minus 10 x 1.5 percent on the HV winding, plus the control mode you intend to use: local automatic voltage regulation, remote, or both. Write the number of steps, not the phrase wide range.

The reverse mistake costs money every maintenance cycle. An on-load tap changer adds a diverter switch, contact wear, oil filtration and a maintenance interval that a rural utility may not have the crew for. Where the grid holds voltage within a few percent all year, an off-circuit range and a properly sized transformer will outlast an OLTC nobody services.



Losses: the Cost That Stays After Delivery

No-load loss is the power a transformer consumes simply by being energised, and it is constant: 8,760 hours a year whether the plant is running or idle. A 25 kW no-load loss is 219,000 kWh a year, and close to 5.5 GWh across a twenty-five-year service life. Load loss behaves the other way, varying with the square of the current, so it tracks the duty cycle rather than the calendar.

That asymmetry is why tenders evaluate loss against a capitalised value per kilowatt rather than comparing purchase price alone. It also explains why a slightly more expensive core can be the cheaper transformer: the buyer pays for the loss once, and then pays for it in every month of operation.

Whatever evaluation method you use, the specification should demand two sets of numbers. Guaranteed no-load and load loss, with a tolerance and a penalty if the tested values exceed them. And measured values in the routine test report of the actual unit, so the comparison is made on evidence rather than on a datasheet.



What Belongs in a Substation Transformer Specification

The table below is the short version of what our engineering desk checks first when a substation tender arrives. The third column is not hypothetical; it is what we see happen when the row is left blank.

Parameter	What to write	What happens when it is left blank
Impedance	Target value with tolerance, stated on the transformer rating base	Fault current and breaker rating no longer agree
Cooling and temperature rise	ONAN / ONAF / OFAF, rise class, site ambient and altitude	Rating is set for a 40 C default the site never sees
Tap range	Off-circuit or on-load, step count and range, control mode	Voltage cannot be held at the end of a weak feeder
Loss guarantees	Guaranteed no-load and load loss with penalty clause	Tenders are compared on price only
Insulation level	Lightning impulse level for the voltage class, external clearances	Clearances are set by factory practice, not by your standard
Test package	Routine, type and special tests, plus which report you need per unit	Missing type test evidence delays energisation
Documentation	Drawings, nameplate language, test reports, O and M manual	Site handover stalls on paperwork
Transport and storage	Sea freight protection, storage instructions, humidity control	Moisture ingress before commissioning



On tests, the split is worth stating explicitly. Routine tests run on every unit: winding resistance, ratio, short-circuit impedance, no-load and load loss, and applied and induced voltage dielectric tests, plus oil breakdown voltage and moisture on liquid-immersed units. Type tests, including temperature rise, lightning impulse and short-circuit withstand, run on a representative design. Special tests such as partial discharge or sound level are added when the specification asks, and they belong on units that will sit near hospitals, data centres or residential areas.



How Ryan Electric Handles Substation Transformer Packages

Ryan Electric has manufactured transformers in Jiangsu since 2007, from a 120,000 square metre plant with more than 180 sets of production and test equipment and 37 patents in the portfolio. Since 2023 the company has operated as an Eaton joint venture partner, and holds UL, CSA, IEEE, DEKRA, CE and CNAS certifications, with a CNAS-accredited laboratory and dual 35 kV and 110 kV test capability on site. Our power transformer range covers oil-immersed units up to 110 kV class and 100,000 kVA for substation duty, and the substation transformer packages we quote most often are 35 kV and 110 kV three-winding units feeding an MV distribution board.

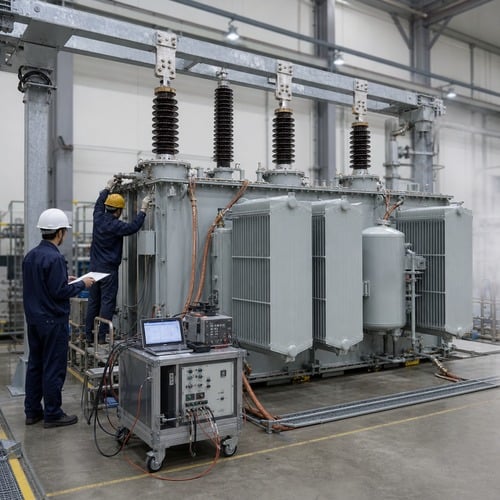

The engineering review is the part customers comment on. When a specification arrives with impedance, rise class or tap range left open, our engineers return a marked-up document with a proposed value, the reason behind it, and every point where it departs from the tender text. Each unit ships with its own routine test report showing measured losses beside guaranteed values, taken from the same test bay that performed the 110 kV class type test.

Details of the range are published on our power transformer product page and on the unit substation transformer page for projects that combine the transformer with MV switchgear in one enclosure.



Nine Items to Close Before the Purchase Order Goes Out

None of these take long. Two of them cost nothing at all.

• Rating, ratio and vector group, taken from the approved load list rather than from the earlier concept study.
• Impedance target with a tolerance, and the base on which it was calculated.
• Cooling class and temperature rise, with site ambient and altitude stated on the datasheet.
• Tap range and control mode, including whether automatic voltage regulation is required.
• Guaranteed no-load and load loss, with the evaluation method your tender uses.
• Insulation level and external clearances for the voltage class.
• Test package, per unit and per design, plus the language of the reports.
• Nameplate and documentation requirements, agreed before drawing approval, not after.
• Packing, transport and storage instructions for the actual route to site.

If two or three of those rows are still open on your substation transformer package, send us the specification as it stands, together with the site ambient, altitude and the fault level from your system study. Our engineers will return a compliance sheet against it, with unnamed values filled in and every deviation marked, so the review that happens at factory acceptance stops being a surprise.
