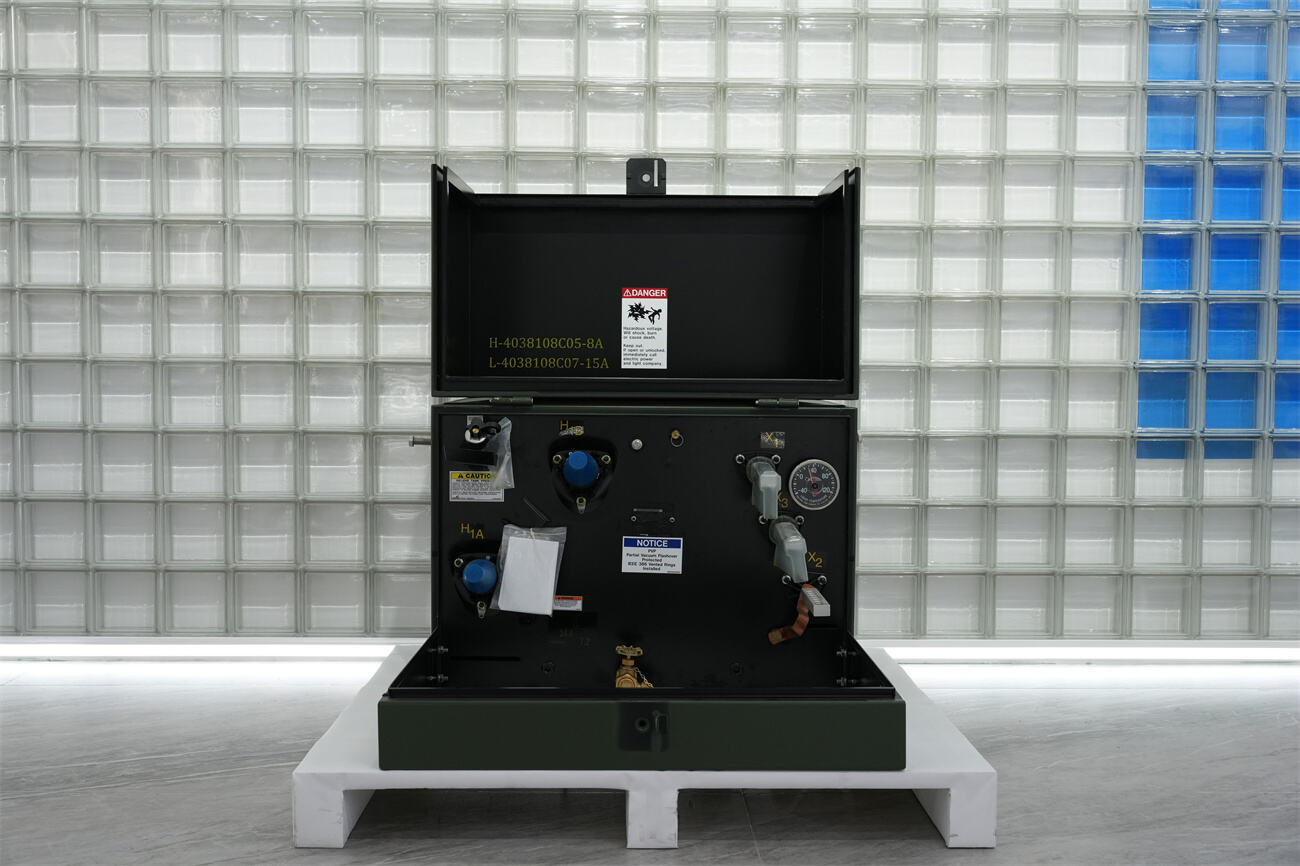

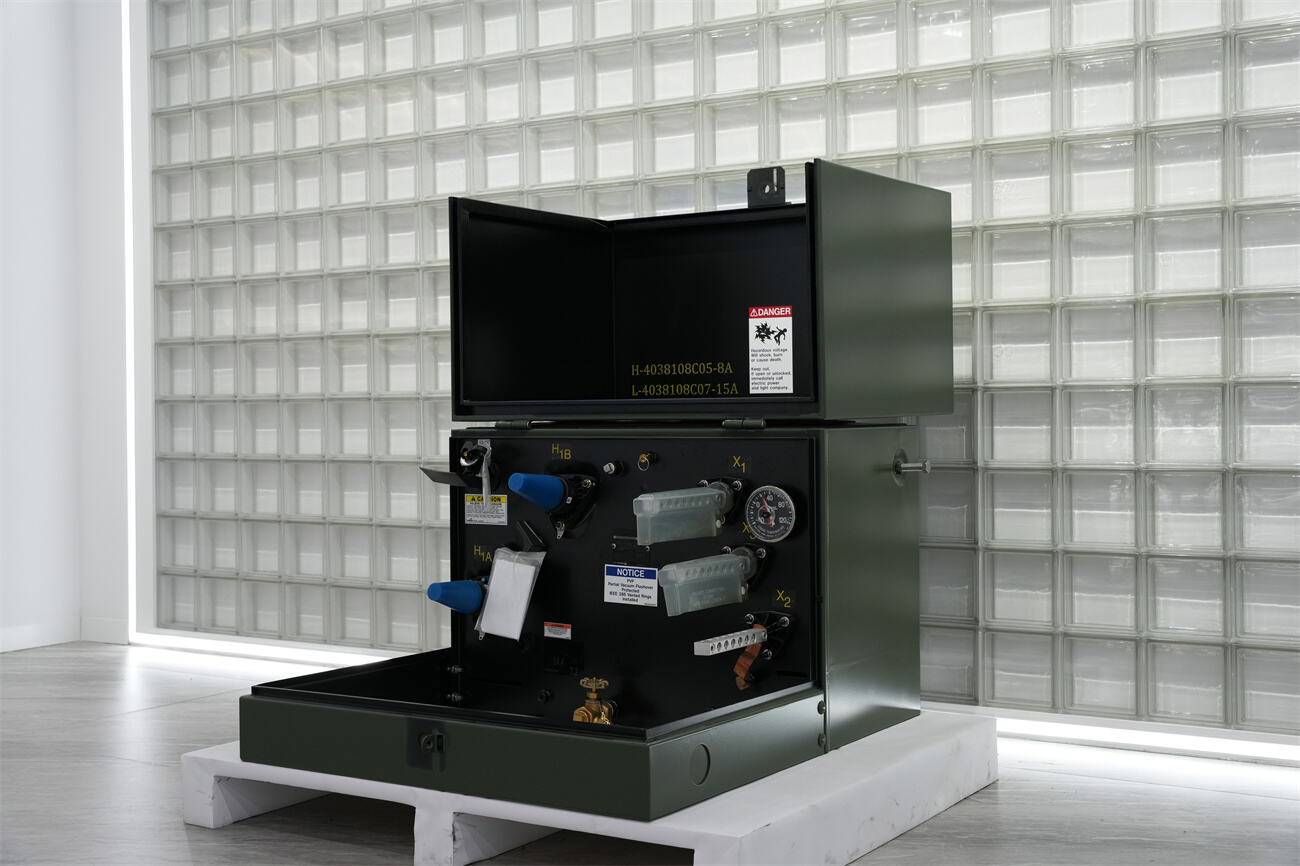

Up to 44kV Up to 10000kVA Single Phase Pad Mounted Transformer

Overview

Voltage:	Up to 44 kV
Rated Power:	Up to 10000 kVA
Primary Voltage:	12.47 kV, 13.2 kV, 13.8 kV, 19.9kV, 20 kV, 22 kV, 24.9 kV, 33 kV, 34.5 kV
Secondary Voltage:	120 V, 220 V, 230 V, 240 V, 380 V, 400 V, 415 V, 480 V
Core material:	Copper/Aluminum
Cooling Methods:	ONAN/ONAF/KNAN/KNAF
Transformer Oils:	Mineral oil/FR3/Silicone oil
Operational Environment:	Heat/Cold/Earthquake/Corrosive
OEM & ODM:	Color & Logo

Description

Our 10 kV-44 kV Single Phase Pad Mounted Transformers provide a reliable and efficient power solution with a compact, lightweight design that reduces installation costs and space requirements. They can operate individually or be combined into three-phase configurations, offering flexibility for residential, commercial, and industrial applications. With a fully sealed structure for long-term durability, low maintenance needs, and the ability to cut line losses by over 60%, they deliver stable, cost-effective performance for modern power distribution.

Advantages

• Compact and Cost-Efficient: Small, lightweight design reduces installation space and infrastructure costs.

• Flexible Power Supply: Can operate as a single-phase unit or be combined into a three-phase system, adaptable for direct loads or ring networks.

• High Reliability: Fully sealed construction ensures strong overload capacity, long service life, and minimal maintenance.

• Improved Efficiency: Shorter low-voltage distribution lines reduce energy losses by up to 60%, lowering operating costs.

• Space-Saving Solution: Ideal for urban, rural, or industrial sites where land and space are limited.

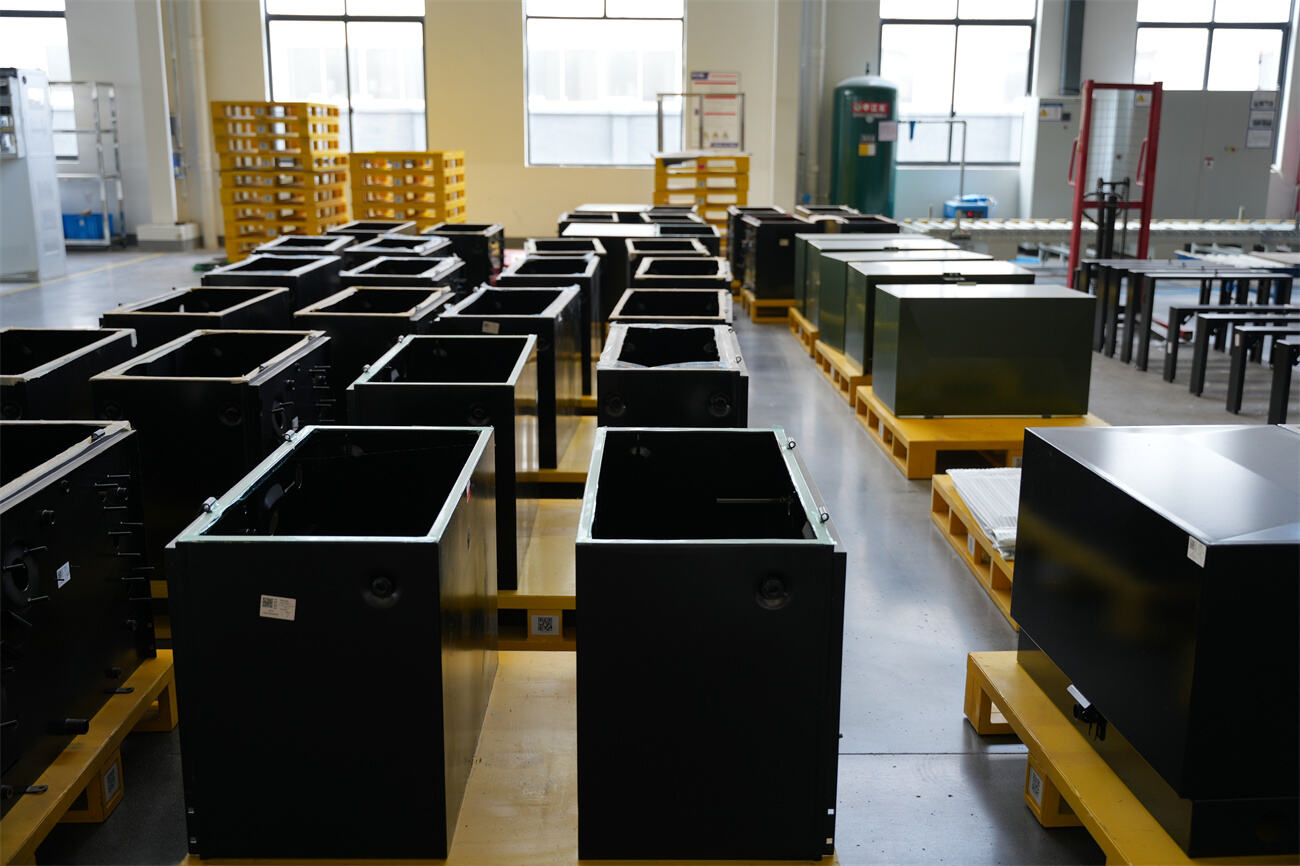

Production Process

Finished Transformer

FAQ

Q: Who are we?
A: As a joint venture with Eaton in 2023, Ryan Electric is a leading and professional manufacturer of cast resin transformer, oil immersed transformer, pad mounted transformers and every kinds of substations since 2007.

Q: Why should you buy from us not from other suppliers?
A: Our company holds international certifications including UL/CSA/IEEE/IEC/EUR and DEKRA. Also obtained CNAS certification for testing center. We are key partners to world-renowned enterprises such as Microsoft, Amazon, TBEA, and State Grid, providing reliable, secure, and stable power equipment and services.

Q: OEM and ODM available?
A: Yes, we supply customized solution to clients.

Q: What are preferred Terms of Payment and delivery?
A: T/T, L/C, EXW, FCA, FOB, CFR, CIF, DDP

Q: How long is the warranty of your product?
A: We offer a standard warranty of 12 to 24 months from the date of commissioning or shipment, depending on the product line.

Q: How long is your production time?
A: Lead times vary based on product complexity, customization, and order volume. Standard product lead times range from 4 to 12 weeks. With a monthly production capability of 2,000 units, our annual output reaches up to 20,000 MVA.

Q: After-sales service
A: Our support services include:
-Installation guidance & technical support available on-site or online.
-30-minute response time to any customer inquiry.
-2-hour commitment to provide a preliminary solution.
-48-hour on-site dispatch if required.

Q: Want to join our network as a branded partner?
A: Yes, we welcome potential partners! We are committed to supporting our agents with comprehensive business, technical, and after-sales support. To ensure your success, we implement a market protection strategy and work closely with you to develop the global market, fostering a truly win-win partnership.

Q: What are the primary applications of our transformers?
A: Our transformers deliver specialized solutions for a range of key sectors: Electric Power, Data Center, New Energy, Petrochemical Industry and Construction, among others.
