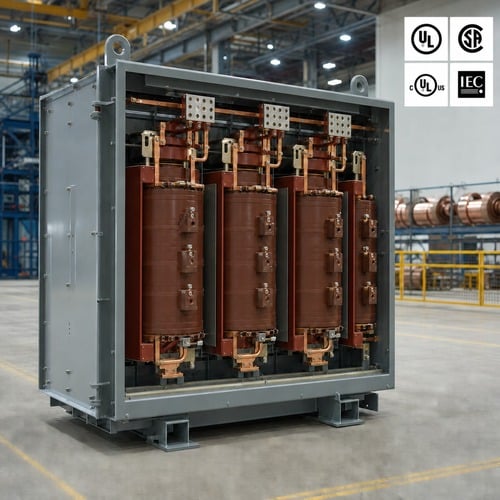

Autotransformer vs Isolation Transformer: A Selection Guide for 480V and 600V Projects



Autotransformer vs Isolation Transformer: The Question Behind Half Our Sizing Emails

A panel shop in Texas sent us a one-line diagram last April with a single line of text above it: "600 V service, 480 V motor load, roughly 400 hp. Do we really need a 500 kVA transformer, or will a buck-boost do it?" That email is the whole autotransformer vs isolation transformer decision in two sentences. The answer turned on two facts, and neither of them was the voltage ratio: how much winding capacity the customer was actually paying for, and whether the installation needed a new grounded system.

Both products come off the same line at our plant, and both leave with a UL mark when they are built for North America. They do completely different jobs. An autotransformer shares a single winding between the primary and the secondary circuit, so load current flows through a common section of copper. A two-winding isolation transformer keeps the two circuits electrically separate and couples them only through the magnetic circuit. Everything downstream of that difference, from cost and weight to losses, grounding, harmonic behaviour and fault current, follows from it.

Here's the part most buyers miss: the decision is rarely about changing voltage. Almost any device can change voltage. It is about what else the transformer is supposed to do inside your electrical system.



The kVA Math That Decides Most Autotransformer Specifications

The rating rule is simple, and it explains why these units are so much smaller than the two-winding alternative. The winding only has to carry the transformed portion of the load: transformed kVA = load kVA x (1 - Vsecondary / Vprimary).

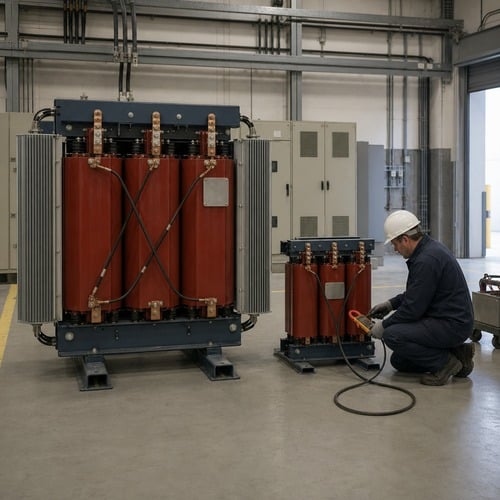

Run that on the Texas inquiry. Stepping 600 V down to 480 V gives 1 - (480 / 600) = 0.20, so a 500 kVA load needs only about 100 kVA of autotransformer winding. The customer is comparing a 100 kVA autotransformer against a 500 kVA two-winding unit: one fifth of the copper, roughly a third of the weight in our standard open-core designs, and a much smaller core, which is where most of the no-load loss sits.





Two engineering consequences travel with that saving. First, the effective impedance seen by a fault is lower, so the available fault current at the 480 V bus is higher than it would be behind a two-winding unit of similar kVA. The upstream protective device and the interrupting rating of the downstream panel have to be checked against the new number, not the old one. Second, there is no galvanic separation at all: whatever noise, transients or harmonic current exists on the primary side exists on the secondary side too.



Where an Isolation Transformer Stops Being Optional

There are four situations where we stop discussing the autotransformer option entirely, and it is usually obvious from the first page of the drawing set.

• Deriving a new grounded system. If the scope needs a new neutral, or a 480Y/277 V source feeding a 208Y/120 V panel, the transformer has to be a separately derived system. An autotransformer cannot be one.
• Zero-sequence and triplen harmonic current. A delta-connected primary on a two-winding transformer gives third, ninth and fifteenth harmonic currents a closed path to circulate in. An autotransformer has no such barrier and sends them straight back to the source.
• Drive and rectifier loads. Upstream of VFDs, the normal specification is a custom three phase transformer built as a two-winding unit with a delta primary and an electrostatic shield, which intercepts common-mode noise that an autotransformer simply cannot.
• Ground-fault sensing. Zero-sequence CT schemes depend on a galvanic break between primary and secondary. An autotransformer does not provide one, so residual and zero-sequence protection has to be redesigned.

The failure we see most often is not a rating error, it is an assumption error: using a buck-boost autotransformer to create 120 V for control power or receptacles from an ungrounded or corner-grounded 480 V system. The voltage shows up on the meter, so the installation looks correct, but there is no return path to clear a ground fault and no grounded conductor to reference. That configuration is a life-safety problem, and no saving on a 15 kVA unit is worth it. We decline those orders and send a two-winding proposal instead.



Isolation Transformer Grounding and the Code Rules Buyers Ask About

The grounding question is where isolation transformer grounding decisions actually get made. Under the NEC, all transformers other than autotransformers are separately derived systems, because the primary circuit conductors have no direct connection to the secondary conductors. The secondary therefore needs its own system bonding jumper, its own grounding electrode conductor and its own grounding electrode per 250.30. Because an autotransformer shares a winding between the two circuits, it is not a separately derived system at all: there is no new grounding electrode conductor to install, and the equipment bonding path back to the source has to stay intact and continuous. The rule and its consequences are set out in detail in this EC&M guide to grounding and bonding of separately derived systems.

Overcurrent protection is the second rule buyers ask about. Autotransformers require individual overcurrent protection in series with each ungrounded input conductor under NEC 450.4, which is a different pattern from the two-winding rules most electrical designers work with every day. It is worth confirming on the drawing before units are released to production, because retrofitting a protection change after the switchgear is built is an expensive conversation. The reference text is published by NFPA 70, National Electrical Code.

Certification scope is the third item, and it is where a UL listed transformer supplier should be able to answer without checking. ANSI/UL 1561 covers dry-type general purpose and power transformers in step-up, step-down, insulating and autotransformer constructions, and its scope stops at a nominal primary or secondary rating above 600 V. Two practical consequences follow. Any autotransformer bought for a 480 V or 600 V system should be listed to UL 1561, and a supplier describing a 13.8 kV unit as UL 1561 listed has a documentation problem. Ask for the standard number and the voltage class, not just a logo. The scope is published on the UL Standards and Engagement store.



Autotransformer vs Isolation Transformer, Side by Side

Decision point	Autotransformer	Isolation (two-winding)
Transformed kVA, 500 kVA load, 600 to 480 V	About 100 kVA	500 kVA
Installed weight and floor space	Low	High
No-load loss	Lower (smaller core)	Higher
Separately derived system under NEC 250.30	No	Yes
Triplen harmonic / zero-sequence path	Passes through	Blocked by a delta primary
Common-mode noise attenuation	None	Yes, with an electrostatic shield
Fault current limiting	Minimal	Set by the specified %Z
Typical use	600/480 V or 208/240 V matching on one grounded system	New distribution, drive loads, harmonic loads, neutral derivation

Our own working rule is short. If the answer to "does this load need a new grounded system, or a barrier against harmonic and common-mode current?" is no, and the voltage ratio is modest, the autotransformer usually wins on total installed cost. If either answer is yes, the two-winding unit is the only compliant choice, and the autotransformer vs isolation transformer comparison ends there.



What We Check Before Either Construction Ships

Routine testing is identical for both constructions, and it is where an order either becomes a transformer or becomes scrap: ratio and polarity, winding resistance, applied voltage and induced potential, no-load loss and load loss measured against the calculated values, and temperature rise on a sample basis. For cast-resin units we add a partial discharge measurement and hold the result below the limit agreed at order stage, because a clean reading at the factory is a warranty conversation avoided in year three.

Ryan Electric builds both types at a 120,000 square metre plant with 180+ sets of production and test equipment and 37 patents in the group, under UL, CSA, IEEE, DEKRA, CNAS and CE certification. Since 2023 we have also operated as an official joint-venture partner of Eaton, which is why the routine test documentation is the same format on a 15 kVA buck-boost and on a 5 MVA oil-immersed unit. As a UL listed transformer supplier for North American utility, data center and industrial projects, we ship pad-mounted, dry-type and oil-immersed units with the marks the local inspector expects on the nameplate, whether the order is a standard distribution unit or a custom three phase transformer built to an unusual ratio.

One detail from the Texas job is worth passing on. The autotransformer we proposed was rated 100 kVA, but the enclosure still needed 480 V-class cable entry and a neutral bar for the panel feeders. A unit that looks cheapest on the quote line is not the cheapest to install until the termination detail is drawn properly, and that is a drawing question, not a price question.



Send the One-Line Diagram and We Will Size Both Options

We answer sizing emails with a comparison rather than a single price. Send the one-line diagram with source voltage and grounding arrangement, load kVA and motor horsepower, any drive or rectifier load, the available fault current at the service, and the site ambient. We will come back with both the autotransformer option and the two-winding option, each with its winding kVA, %Z, enclosure class and the certification standard it will be listed under.

If the project is a custom three phase transformer with an unusual ratio, an off-standard enclosure or a specific test scope, our engineers confirm the winding configuration before a drawing is released. Request a quote or send the diagram through to our sales engineering desk, and we will tell you which of the two constructions your installation actually needs.

About the Author: This guide was prepared by the sales engineering team at Jiangsu Ryan Electric Co., Ltd., which has designed, type-tested and shipped dry-type, oil-immersed and pad-mounted transformers for data center, utility and industrial projects across North America, the Middle East and Southeast Asia. For help with autotransformer and isolation transformer selection, or to have a one-line diagram reviewed, contact our engineering desk through the site enquiry form.
